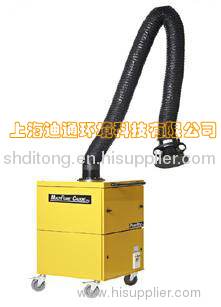

1.For eliminate smoke and dust generated by a variety of applications - welding, cutting, grinding, flame cutting, drilling, grinding, milling, spraying, screw machining and more.
1) Compact design and a low centre of gravity, (only 1m / 3ft high), makes the unit very easy to move.
2) The unit has a built in high efficiency filtering system with spark arrestor, pre filter and a welding filter surface area of 25m2.
3) The unit is the perfect solution for light engineering and repair work.
2. Technical Data
Product No. | MFC-1200 |
Housing material | galvanized steel |
Housing finish | epoxy powder coat |
Unit dimensions | 771×689×1007 mm |
Air volume | 1200 m3/h |
Extraction arm | KUA-S/EA-S: 2m or 3m |
Area of reach | 3m, both vertical and horizontal |
Filter monitor | red light when filter is full |
Noise level | < 70db(A) |
Weight | Filter: 105kg |
Power supply | 0.75kw 380v, 50Hz, 3-ph 0.75kw 220v, 50Hz, 1-ph |
